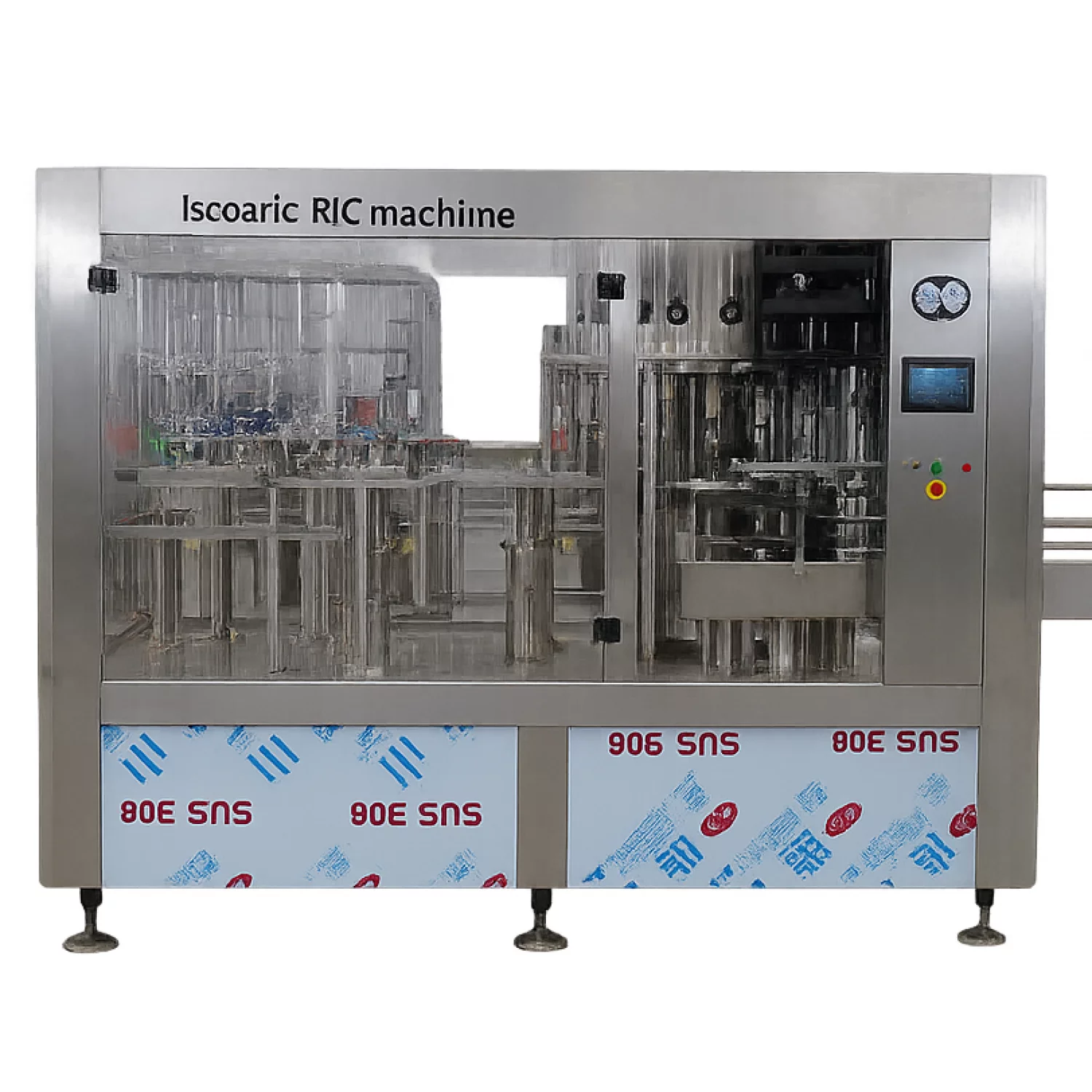

Automatic Plastic Bottle RFC Isobaric Carbonated Beverage Filling Machine – High-Speed Precision For UAE Beverage Manufacturing

Technogen Enterprise, a trusted manufacturer, supplier, and exporter of advanced beverage packaging machinery, proudly presents the Automatic RFC Isobaric Carbonated Beverage Filling Machine for PET Bottles. This high-performance monoblock system is designed to offer precise, hygienic, and high-speed filling of carbonated beverages in PET bottles, making it the ideal choice for UAE beverage manufacturers. With a robust construction and advanced automation, it provides unmatched reliability and productivity for beverage producers in the UAE and beyond.

The machine supports PET bottles from 100 ml to 1000 ml and integrates Rinsing, Isobaric Filling, and Capping into a single monoblock system. This makes it perfect for manufacturers looking for consistent carbonation, precise filling, and leak-proof sealing in plastic bottles.

Machine Overview

The Automatic RFC Isobaric Carbonated Beverage Filling Machine for PET Bottles is built for industries where carbonation retention, hygiene, and sealing integrity are crucial. Perfect for various beverage categories, including:

• Carbonated soft drinks

• Soda and aerated beverages

• Sparkling flavored beverages

• Energy drinks

• Functional carbonated drinks

• Tonic and mixer beverages

The system addresses key challenges in carbonated beverage bottling, including:

• Controlled turbulence during filling

• Zero oxygen ingress

• Stable CO₂ pressure

• Accurate fill levels

• Reliable sealing mechanisms

Equipped with counter-pressure isobaric filling technology, the system ensures consistent output, high-quality production, and minimal operator input—perfect for UAE manufacturers seeking high-efficiency and precision.

Machine Design & Construction

The monoblock system is designed for long-term durability and easy maintenance, with a construction that includes:

• Stainless-steel frame and SS304/SS316L product contact parts

• Hygienic design layout for easy cleaning

• Robust construction for high-volume operations

Key Construction Features:

• Rotary rinsing turret with neck-handling grips for stable bottle positioning

• Pressurized isobaric filling bowl for carbonation stability

• ULTRA mechanical isobaric valves for CO₂ control

• Star-wheel bottle transfer system for smooth bottle movement

• Plastic screw capping turret for high-speed sealing

• Safety enclosures with interlocking guards

• PLC and HMI automation, with built-in diagnostics for performance monitoring

This design guarantees that the machine performs reliably in continuous bottling conditions while maintaining the highest production standards.

Working Process

The RFC Isobaric Carbonated Beverage Rinser-Filler-Capper Machine performs the three critical steps of Rinsing, Isobaric Filling, and Capping.

1. Rinsing:
   Every PET bottle undergoes thorough internal cleaning to ensure the highest hygiene standards:

   • Neck-handling gripping system

   • Stainless-steel spray nozzles

   • Sterile air or water rinsing

   • Controlled inversion and drainage

   • “No Bottle – No Rinse” operation

2. Isobaric Filling (Counter-Pressure Technology):
   The machine’s 2-step mechanical filling valve ensures precise CO₂ pressurization and minimal oxygen exposure:

   • Bottle lifting and sealing beneath the filling valve

   • Pre-evacuation to remove air

   • CO₂ pressurization for filling

   • Smooth long-tube filling for foam-free transfer

   • Snift action to release excess pressure for consistent fill levels

   Isobaric filling technology helps maintain carbonation, preserve flavor, and ensure consistent product quality.

3. Capping (Plastic Screw Capping):
   The machine uses high-speed rotary capping heads for precise sealing:

   • Magnetic torque adjustment for consistent capping

   • Stabilized bottle holders to prevent movement during capping

   • Automatic cap feeder and chute

   This system ensures tamper-proof, leak-proof sealing in all PET bottle formats.

Salient Features

• Fully automatic RFC monoblock system for seamless operation

• Designed for 100 ml to 1000 ml PET bottles

• Stainless-steel construction with hygienic design

• ULTRA mechanical isobaric filling valves for accurate carbonation

• Smooth bottle transfer using star wheels

• PLC & HMI-based controls for recipe settings and monitoring

• CIP-ready design for efficient cleaning

• CO₂ pressurization and air removal for stable carbonation

• High accuracy with minimal foaming

• Safety enclosures with interlocking guards

Technical Highlights

This machine offers high-speed and precision with the following key features:

• Counter-pressure filling ensures carbonation stability

• Pressurized isobaric product tank maintains product consistency

• Precise venting control to manage fill levels

• High-pressure rinsing for optimal bottle cleanliness

• Anti-rotation bottle support during capping

• Automatic rejection of improperly capped bottles (optional)

• Optional hot water spray for enhanced sanitation at discharge

These features make it ideal for beverage manufacturers in the UAE looking for export-grade performance.

Machine Advantages

• Optimal carbonation retention

• Accurate filling under varying pressure conditions

• Minimal manual intervention for efficient production

• Reduced product spillage and waste

• Efficient sanitation with CIP compatibility

• Fast format changeover for different bottle sizes

• Long operational life with low maintenance costs

• Suitable for high-speed production environments

Applications

This machine is perfect for a wide range of industries, including:

• Carbonated soft drink manufacturers

• PET bottle soda producers

• Sparkling and flavored beverage companies

• Energy drink facilities

• Tonic water & mixer brands

• Contract bottling plants

It supports PET bottle sizes from 100 ml to 1000 ml, making it versatile for various product types.

Technical Specifications

Why Choose Technogen Enterprise?

As a global leader in beverage packaging machinery, Technogen Enterprise offers:

• Precision-engineered carbonation filling systems

• Strong international presence, including the UAE

• High-grade stainless steel fabrication for hygiene and durability

• Fast delivery and installation support

• Long-term reliability for continuous production

• Customization based on bottle size, speed, and layout

• Competitive pricing with proven performance

Technogen is trusted by leading beverage brands in the UAE and beyond for its dependable and future-ready filling technology.

Frequently Asked Questions (FAQs)

Q1: Can the machine fill carbonated beverages in PET bottles?
A1: Yes, it is designed specifically for PET bottle carbonation.

Q2: What bottle sizes are supported?
A2: The machine accommodates 100 ml to 1000 ml PET bottles.

Q3: What capping system is used?
A3: The system uses plastic screw capping.

Q4: Does the system preserve carbonation?
A4: Yes, it uses isobaric counter-pressure filling to maintain carbonation.

Q5: What speeds are available?
A5: The machine can fill 3,000 to 12,000 bottles per hour, depending on configuration.

Contact Technogen Enterprise Today

Technogen Enterprise invites beverage manufacturers in the UAE to enhance their production capabilities with the Automatic RFC Isobaric Carbonated Beverage Filling Machine. Contact us for a detailed quotation, technical drawing, and project consultation.
