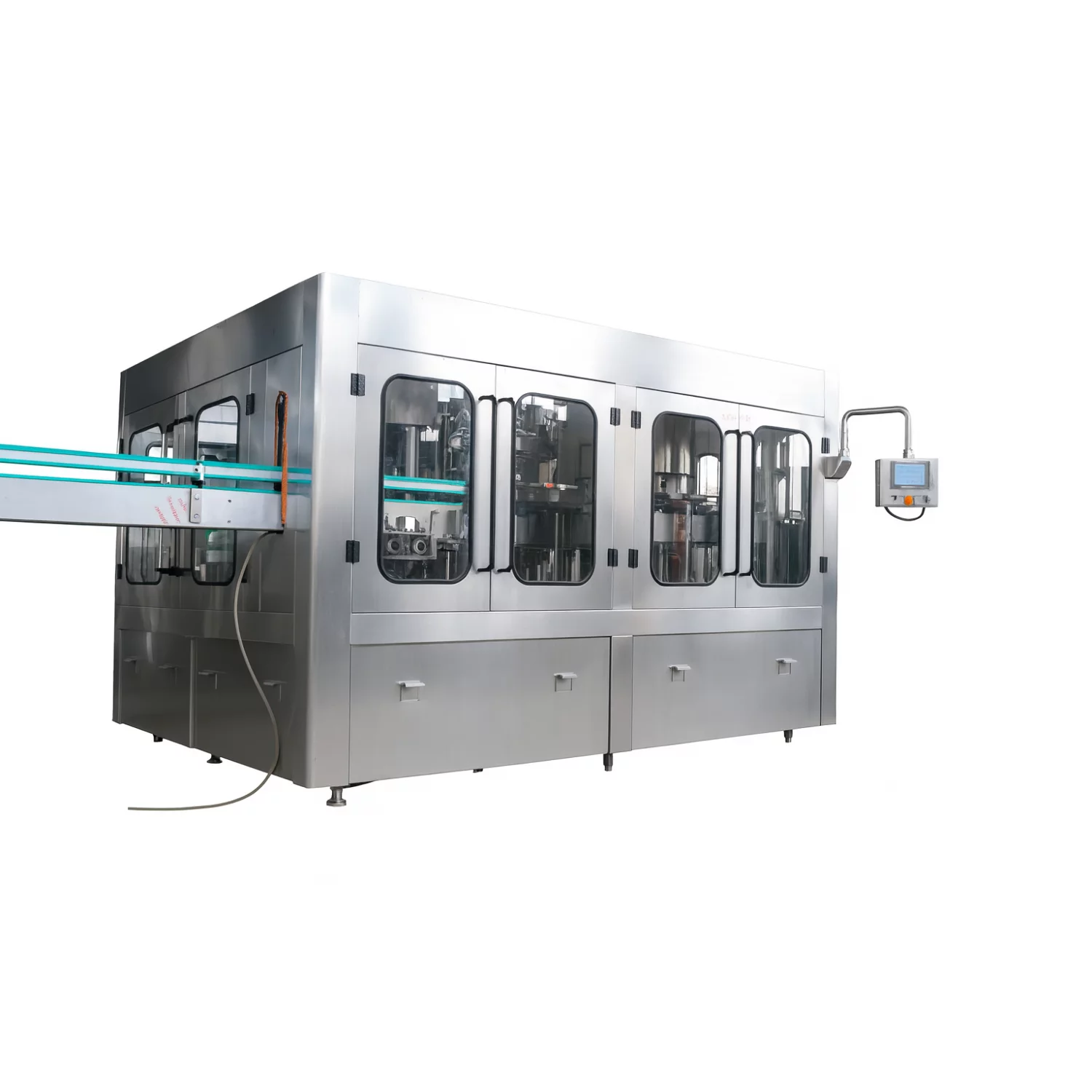

Automatic RFC Isobaric Carbonated Beverage Filling Machine In UAE – Precision For Carbonated Beverage Bottling

Technogen Enterprise, a leading manufacturer, supplier, and exporter of advanced machinery, proudly introduces the Automatic RFC Isobaric Carbonated Beverage Filling Machine, a high-performance solution designed for precision bottling of carbonated beverages in glass bottles. Engineered with cutting-edge technology and durable mechanical design, this machine provides exceptional accuracy, consistency, and hygiene, making it the ideal choice for beverage manufacturers in the UAE and the broader Middle East region.

This machine is designed for glass bottles ranging from 100 ml to 1000 ml and integrates Rinsing, Isobaric Filling, and Capping into a seamless monoblock platform. Whether you're bottling carbonated soft drinks, fruit-flavored sparkling beverages, or premium beverages like beer and tonic water, the Automatic RFC Isobaric Carbonated Beverage Filling Machine meets international quality standards while ensuring long-term reliability and efficiency.

Machine Overview

The Automatic RFC Isobaric Carbonated Beverage Filling Machine is specifically designed for applications where carbonation stability, hygiene, and sealing integrity are critical. Ideal for industries in the UAE, including those in Dubai, Abu Dhabi, Sharjah, and Ajman, this machine caters to a range of carbonated beverage types:

• Carbonated soft drinks

• Sparkling fruit beverages

• Soda and aerated drinks

• Beer and craft beer

• Tonic water

• Carbonated functional drinks

• Energy drinks

Carbonated beverages require precise handling during bottling to maintain their integrity. The Automatic RFC Isobaric Carbonated Beverage Filling Machine addresses the unique challenges posed by carbonated liquids by ensuring:

• Lower turbulence during filling

• Zero oxygen ingress

• Consistent CO₂ retention

• Controlled headspace

• Accurate liquid levels

Its advanced counter-pressure isobaric filling system, stainless-steel construction, and synchronized mechanical operations ensure efficient and high-quality production.

Machine Design & Construction

Built with a robust stainless-steel frame and food-grade SS304 / SS316L contact parts, the machine is engineered for durability, corrosion resistance, and compliance with hygiene standards. The design incorporates various features for efficient operation and easy maintenance, such as:

• Rotary rinsing turret with precise neck-handling grippers

• Counter-pressure filling bowl designed to stabilize carbonation

• ULTRA isobaric mechanical filling valves

• Smooth star-wheel bottle transfer system

• Choice of crown or ROPP capping turret

• Full protective guarding with safety interlocks

• PLC and HMI-based automated controls

These features ensure the machine is capable of continuous high-speed operation while maintaining product quality and minimizing downtime.

Working Process

The Automatic RFC Isobaric Carbonated Beverage Filling Machine performs three synchronized processes—Rinsing, Isobaric Filling, and Capping—ensuring a seamless production flow:

1. Rinsing
   Each glass bottle undergoes a thorough internal cleaning process using the following features:

   • Sturdy neck-holding grippers

   • Stainless-steel spray nozzles

   • Water or sterile air rinsing

   • Efficient inversion and draining

   • Automatic “No Bottle – No Rinse” control

   The rinser ensures that bottles are free from contaminants, ensuring hygiene before the filling stage.

2. Isobaric Filling (Counter-Pressure Technology)
   Isobaric filling is the gold standard for carbonated beverage bottling, offering the following benefits:

   • ULTRA mechanical 2-step filling valves for precise CO₂ pressurization

   • Oxygen elimination through pre-evacuation

   • Smooth long-tube filling that minimizes foam formation

   • Stabilized pressure equalization

   • Controlled venting and snift action

   This process ensures that every bottle maintains the beverage’s intended flavor and carbonation profile.

3. Capping
   Depending on customer needs, the machine can be configured for:

   • Crown Capping for soda, beer, and aerated beverages, providing tamper-proof seals.

   • ROPP Aluminium Capping for premium beverages and tonic water, ensuring excellent sealing and adjustable knurling rollers.

The capping turret is synchronized with the filling turret to guarantee proper sealing without bottle damage.

Salient Features

• Fully automatic rotary Rinser–Filler–Capper (RFC) monoblock design

• Supports 100 ml to 1000 ml glass bottles

• Choice of crown or ROPP capping for flexibility

• Stainless-steel frame and food-grade product contact parts

• ULTRA isobaric valve technology for high carbonation accuracy

• Smooth bottle transfer via star wheels

• PLC and HMI-based automation with real-time monitoring

• CIP-compatible filling bowl and contact areas for ease of cleaning

• Energy-efficient motors and drive systems

• Safety doors with interlocking switches for operator protection

Technical Highlights

The Automatic RFC Isobaric Carbonated Beverage Filling Machine is engineered for high productivity and seamless workflow. Key technical attributes include:

• Counter-pressure filling to ensure carbonation stability

• High-pressure rinsing jets for thorough cleaning

• Accurate liquid level control via venting mechanisms

• Automatic rejection of bottles without caps (optional)

• Option for hot water spraying at the exit for additional sanitation (optional)

These features enable the machine to perform reliably under demanding production conditions, delivering high efficiency and consistent product quality.

Machine Advantages

• Maintains carbonation integrity

• High fill accuracy with minimal manual intervention

• Efficient cleaning and sanitation process

• Robust construction for long operational life

• Low operating cost per bottle

• Quick changeover for different bottle sizes

• Proven performance in high-speed bottling lines

Applications

This machine is ideal for a variety of industries and applications, including:

• Breweries

• Soda bottling units

• Carbonated soft drink manufacturers

• Sparkling fruit beverage producers

• Tonic water manufacturers

• Energy drink production units

• Contract bottling facilities

It supports glass bottle formats ranging from 100 ml to 1000 ml, making it versatile for different beverage categories.

Technical Specifications

Why Choose Technogen Enterprise?

Technogen Enterprise is a trusted leader in the beverage packaging machinery industry, offering:

• Precision-engineered carbonation bottling solutions

• Strong global export capability, including to UAE and the GCC region

• High-grade stainless-steel fabrication for durability and hygiene

• Reliable after-sales support and service

• Competitive pricing without compromising on quality

• Fast delivery and installation assistance

With extensive experience and expertise, Technogen is committed to providing efficient, long-lasting, and future-ready solutions to beverage manufacturers worldwide.

Frequently Asked Questions (FAQs)

Q1: Can the machine handle both crown and ROPP capping?
A1: Yes, the machine can be configured with either Crown or ROPP capping depending on customer requirements.

Q2: What bottle sizes are supported?
A2: The machine accommodates glass bottles from 100 ml to 1000 ml.

Q3: Is the machine suitable for beer bottling?
A3: Yes, the isobaric counter-pressure system is ideal for beer and other carbonated beverages.

Q4: Does the machine maintain carbonation?
A4: Yes, the system is designed to retain CO₂, ensuring consistent carbonation.

Q5: What is the output capacity?
A5: The machine can fill 3,000 to 12,000 bottles per hour, depending on head configuration.

Contact Technogen Enterprise Today

Technogen Enterprise invites beverage manufacturers in the UAE to enhance their production capabilities with the Automatic RFC Isobaric Carbonated Beverage Filling Machine. Designed for precision, reliability, and high-speed production, it’s the ideal solution for carbonated beverage manufacturers of all sizes.
