Rinsing Filling Capping (RFC) Water Bottle Machine Manufacturer In UAE
Rinsing Filling Capping (RFC) Water Bottle Machine Details
Technogen Enterprise proudly introduces the Rinsing Filling Capping (RFC) Water Bottle Machine, a state-of-the-art solution engineered to meet the growing demand of the water bottling industry in the UAE and the Middle East. Designed and manufactured with precision in Ahmedabad, Gujarat, India, this advanced system combines rinsing, filling, and capping into a single compact, high-performance unit.
As a trusted manufacturer and supplier of water bottling machinery, Technogen Enterprise has established a strong reputation for delivering high-quality, durable, and efficient packaging solutions for clients in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, and Fujairah. Our machines are specifically designed to meet the climate and production demands of the UAE’s fast-growing bottled water industry, providing both efficiency and reliability in every operation.
Advanced Technology for Modern Water Bottling

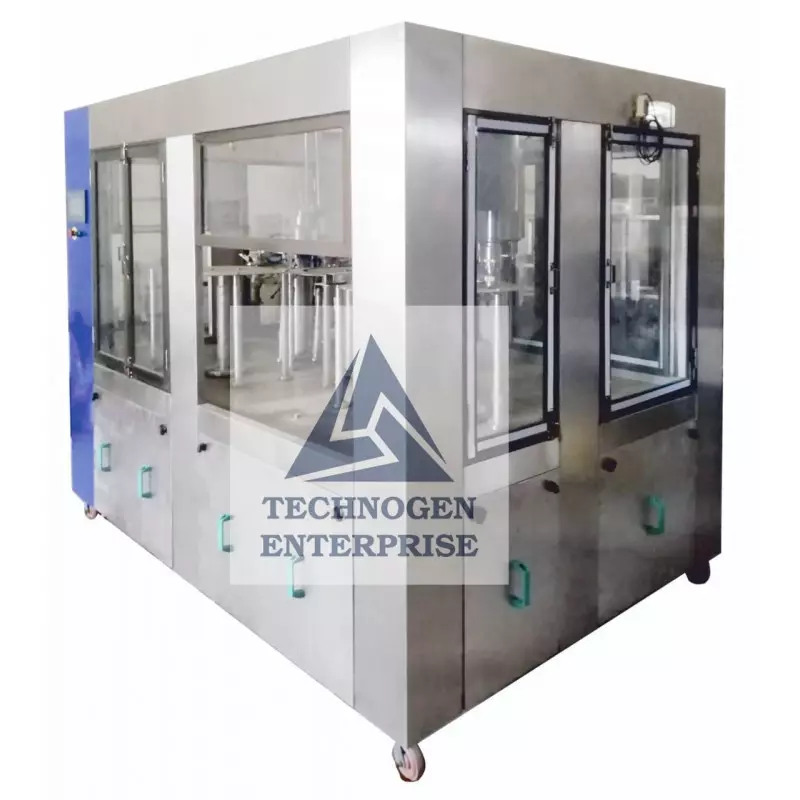

The RFC Water Bottle Machine is an innovative, integrated system that simplifies the entire bottling process. It combines three essential operations—rinsing, filling, and capping—into a synchronized, continuous process. This design minimizes manual intervention, reduces product wastage, and significantly enhances output quality.
Each machine in the RFC series is meticulously engineered for precision and performance. Our models can achieve production outputs from 20 to 90 bottles per minute (for 1-liter bottles), making them suitable for small, medium, and large-scale water bottling facilities. Whether you operate a local mineral water plant in Sharjah or a large-scale packaging facility in Dubai Industrial City, Technogen Enterprise offers a model tailored to your capacity and operational needs.

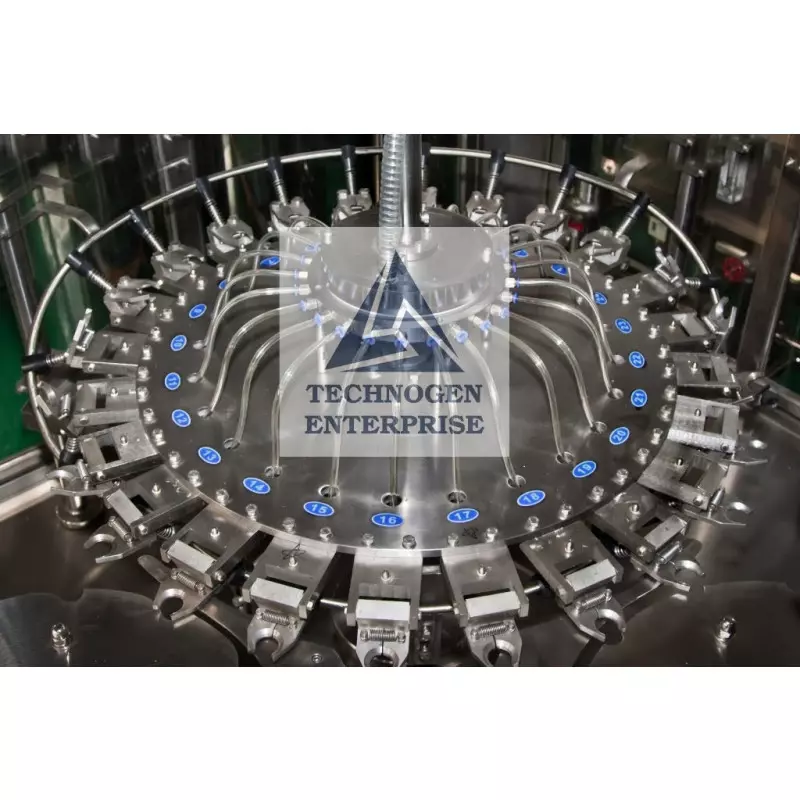

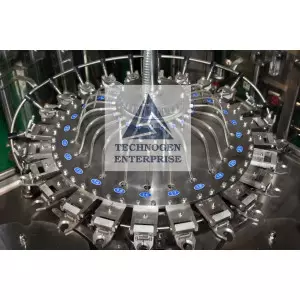

The system’s rotary neck holding technology ensures bottles are securely positioned throughout the rinsing, filling, and capping stages, minimizing spillage and ensuring consistent quality. Equipped with advanced automation, the machine provides intelligent control and monitoring through a user-friendly PLC-based interface.
Precision Engineering Meets Practical Efficiency
Every Technogen RFC machine is a product of superior engineering, ensuring stable operation and unmatched accuracy. The "No Bottle – No Rinse – No Fill – No Cap" interlock system guarantees efficient energy use while preventing unnecessary material waste.

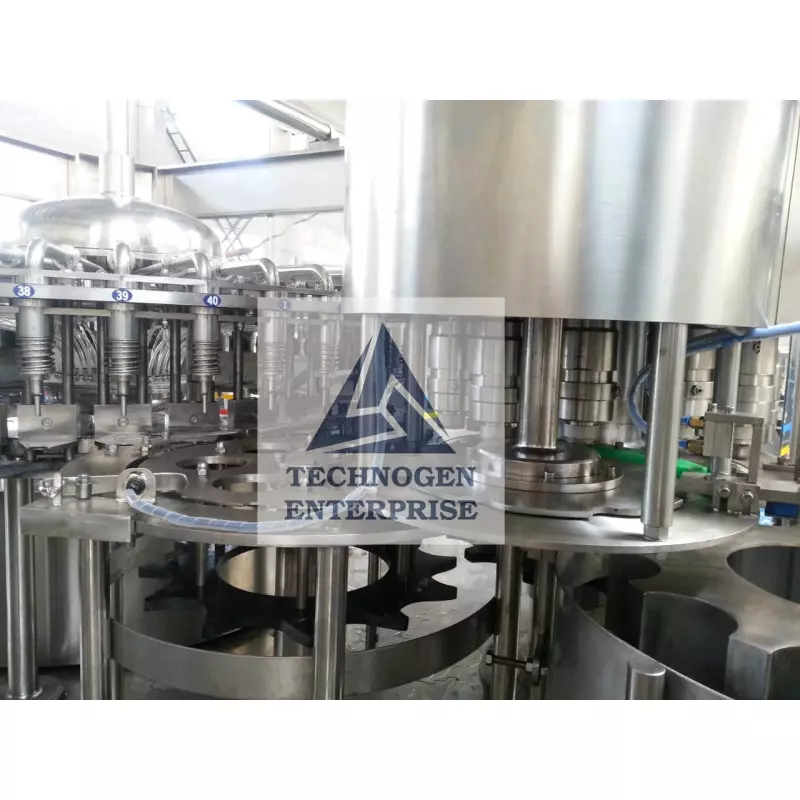

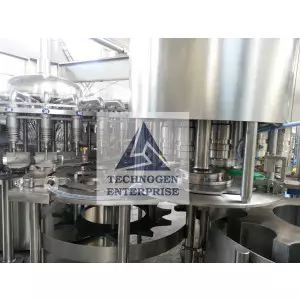

The air blow conveyor system allows smooth and hygienic bottle loading, while the pick-and-place screw capping mechanism ensures a tight and reliable seal every time. This advanced technology makes the RFC machine ideal for packaged drinking water manufacturers and mineral water producers across the UAE.
Additionally, the machine’s modular design ensures easy integration with shrink wrapping, labelling, or inkjet printing units, forming a complete end-to-end packaging solution for modern bottling lines.
Why Choose Technogen Enterprise for RFC Machines
Technogen Enterprise has earned a distinguished name as one of the leading manufacturers and exporters of water bottle filling machinery in India and abroad. Our machines are widely installed in UAE, Oman, Saudi Arabia, and other GCC countries.
Below are the top reasons UAE-based water bottling companies trust us:
Proven Reliability: Our machines are built using durable stainless steel, ensuring long-term performance even in high-humidity climates like the UAE.
Energy Efficiency: Equipped with variable frequency drives (VFDs) to optimize speed and energy consumption.
Ease of Maintenance: Designed for minimal downtime, with easily accessible components and openable nozzles for quick cleaning.
Hygienic Construction: All contact parts are made from AISI 316L stainless steel, maintaining the purity of bottled water.
Customizable Output: Available in multiple production capacities to match your plant’s daily requirements.
Seamless Integration: Can be easily synchronized with labelling, shrink wrapping, or bottle inspection machines.
Salient Features
Compact, space-efficient design ideal for modern bottling plants.
Heavy-duty stainless-steel body ensuring vibration-free operation.
Rotary neck-holding mechanism for secure bottle positioning.
Precision-engineered filling system ensuring ±1% accuracy.
Air blow conveyor for hygienic and smooth bottle loading.
“No Bottle – No Rinse – No Fill – No Cap” safety interlock.
Pick-and-place screw capping mechanism for consistent sealing.
Automatic cap feeder vibrator for uninterrupted operation.
Real-time speed indicator and performance monitoring.
Handles bottles from 100 ml to 1000 ml with ease.
Magnetic hysteresis capping heads for precision sealing.
Easy-to-clean nozzles for hygienic maintenance.
Compatible with lightweight, low grammage preforms.
Ready for downstream integration with shrink tunnels and labellers.
VFD-driven system for adjustable production speed.
Technical Specification
| Specification | TGRFC-24 | TGRFC-30 | TGRFC-40 | TGRFC-60 | TGRFC-90 |
|---|---|---|---|---|---|
| Direction | Left to Right | Left to Right | Left to Right | Left to Right | Left to Right |
| Output | 24 BPM (1L Bottle) | 30 BPM (1L Bottle) | 40 BPM (1L Bottle) | 60 BPM (1L Bottle) | 90 BPM (1L Bottle) |
| Filling Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% |
| Filling Range | 100 ml – 1000 ml | 100 ml – 1000 ml | 100 ml – 1000 ml | 100 ml – 1000 ml | 100 ml – 1000 ml |
| No. of Rinsing Heads | 4 | 6 | 8 | 12 | 18 |
| No. of Filling Heads | 4 | 6 | 8 | 12 | 18 |
| No. of Capping Heads | 2 | 3 | 4 | 6 | 6 |
| Power Requirement | 440V, 3 Phase, 50Hz, 4 Wire System | Same | Same | Same | Same |
| Electrical Load | 2 HP | 2.5 HP | 3 HP | 3 HP | 4 HP |
| Air Blowing Conveyor Length | 7 ft | 8 ft | 9 ft | 9 ft | 10 ft |
Applications Across UAE Industries
The RFC Water Bottle Filling Machine serves a wide range of industries and production environments across the UAE, such as:
Packaged Drinking Water Plants in Dubai, Sharjah, and Abu Dhabi
Mineral Water Bottling Units in Ajman and Ras Al Khaimah
Beverage Manufacturing Facilities handling flavored or vitamin-enriched waters
Pharmaceutical and Nutraceutical Bottling Units
Hotel and Hospitality Industry Water Bottling Lines
Community Drinking Water Projects and Municipal Bottling Stations
Serving UAE’s Leading Industrial Hubs
Technogen Enterprise’s advanced RFC machines are increasingly preferred by companies operating in:
Dubai Industrial City (DIC) – for large-scale water production lines
KIZAD (Abu Dhabi) – for high-volume, automated bottling
Sharjah Industrial Area 11 & 12 – for mid-size bottled water businesses
Ajman Free Zone – for export-oriented bottling operations
RAKEZ (Ras Al Khaimah Economic Zone) – for cost-efficient, high-output bottling facilities
Fujairah Free Zone – for bulk bottled water and beverage packaging units
Our machines are customized to suit the climatic and operational conditions of the UAE, including high temperature environments and continuous-duty operations.
Why RFC Water Bottle Machines Are the Future of UAE Bottling
With the increasing demand for packaged drinking water and mineral water across the Emirates, the need for high-speed, hygienic, and reliable bottling solutions is greater than ever. The Technogen RFC machine offers a competitive edge through:
Reduced operational downtime
Improved bottle handling and hygiene
Consistent output and reduced wastage
Seamless integration into existing lines
User-friendly interface for quick training and operation
The system’s modern automation ensures precise rinsing and filling while maintaining minimal contact with the product, adhering to the strict hygiene standards demanded by UAE regulatory bodies and international quality certifications.
About Technogen Enterprise
Technogen Enterprise is an ISO-certified Indian manufacturer and global supplier of bottle filling machinery, liquid packaging equipment, and turnkey bottling solutions. With installations across Dubai, Abu Dhabi, Sharjah, and several GCC countries, we continue to redefine efficiency and innovation in the packaging industry.
Our machines are CE-certified and built to meet CGMP standards, ensuring compliance, performance, and durability. Each unit undergoes rigorous quality testing before shipment, assuring customers of dependable operation even under heavy-duty industrial use.
We take pride in serving some of the UAE’s most trusted water brands and are committed to providing responsive service, spare part support, and technical assistance to ensure continuous, uninterrupted production.
