Automatic Single Head Lug Capping Machine Manufacturer & Supplier In UAE
Automatic Single Head Lug Capping Machine Details
High-Efficiency Lug Capping Solution for Food, Dairy & Beverage Industries

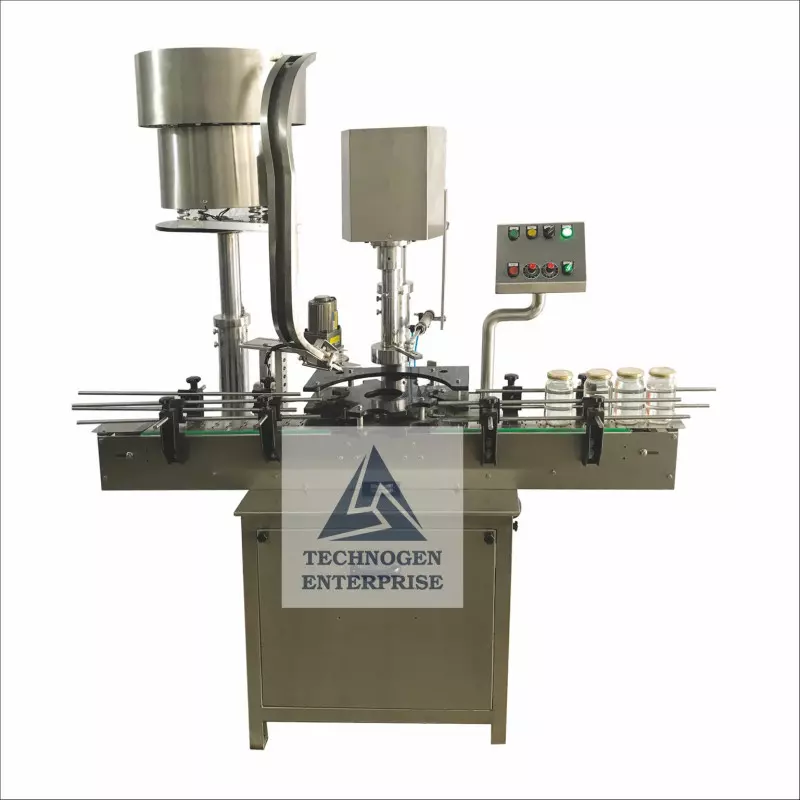

Technogen Enterprise proudly presents the Automatic Single Head Lug Capping Machine (Model TGLC-50) — a state-of-the-art packaging solution designed for food, dairy, milk, vinegar, and pickle industries of UAE. Engineered for accuracy, durability, and ease of operation, this compact machine ensures consistent torque, perfect sealing, and smooth integration into modern production lines.
With its “No Bottle – No Cap” system and pneumatic-mechanical magnetic hysteresis clutch-based lug capping head, the TGLC-50 guarantees uniform torque application and superior sealing quality, minimizing wastage and maximizing efficiency.
Key Features
Compact & Modular Design for space-saving installation.
Stainless Steel 304 Contact Parts ensure hygiene and corrosion resistance.
Single Motor Synchronization for conveyor, star wheel system, and capping turret.
Pneumatic-Mechanical Magnetic Hysteresis Clutch Head for precise torque control.
Cap Feeding System includes both cap feeder elevator and vibrator for smooth, uninterrupted operation.
Quick Changeover between bottle sizes for flexible production runs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TGLC-50 |
| Direction | Left to Right |
| Capping Type | Lug Capping (Shut Pick-Up) |
| Output Capacity | 30 – 40 Bottles Per Minute (Depending on Bottle & Cap Size) |
| No. of Capping Heads | 1 |
| Bottle Diameter | 22 – 100 mm |
| Bottle Height | 15 – 100 mm |
| Cap Diameter | 22 – 84 mm |
| Power Consumption | 1.5 HP (Main Drive) |
| Electrical Supply | 230 V, 1 Phase, 50 Hz |
| Conveyor Height | Adjustable from 800 – 850 mm |
| Machine Dimensions (L × W × H) | 1830 × 875 × 1450 mm |
Safety & Interlock Systems
No Bottle – No Cap System prevents wastage.
Star Wheel Safety Clutch System automatically halts the machine during jams.
Automatic Orientator On/Off System for optimized cap feeding.
Emergency Stop Switch for operator safety.
Optional Add-Ons
PLC – HMI Interface for automated control and real-time monitoring.
Toughened Glass / Polycarbonate Safety Cabinet with door interlock for hygiene and operator protection.
Why Choose Technogen Enterprise?
Trusted Manufacturer, Supplier & Exporter of high-precision packaging machines.
Proven Reliability across global food, beverage, and dairy industries.
Superior Build Quality and after-sales support ensuring long-term performance.
Designed and made in India, now available in UAE and across the Middle East.
